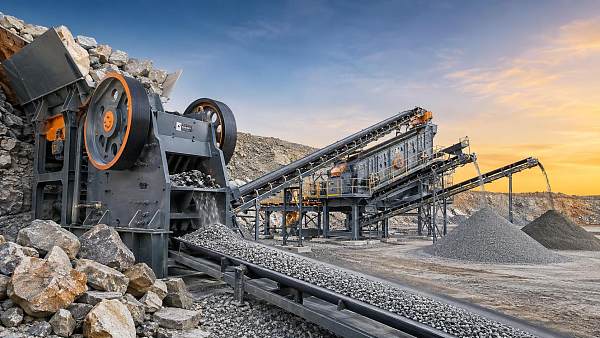

How do crushing ratio calculation methods determine reduction ratio?

A crusher’s reduction ratio is not a fixed property printed on a nameplate. It is a calculated description of how much the material size is reduced between a defined feed point and a defined product point. The calculation is simple in form, but selecting the wrong size basis can make two apparently comparable crusher results misleading.

The most useful starting expression is:

Reduction ratio = characteristic feed size / characteristic product size

For example, if the chosen feed size is 240 mm and the chosen product size is 40 mm, the reduction ratio is 6:1. That result is only meaningful when both values represent the same type of measurement logic: maximum size, a stated percentile from a particle-size distribution, or a setting-derived nominal value. Mixing these approaches is a common source of incorrect equipment comparisons.

Crushing ratio calculation methods therefore determine reduction ratio by defining two things precisely: what portion of the feed distribution represents the crusher inlet, and what portion of the discharge distribution represents the crusher output. In mineral processing, the second question is usually harder than the first because crusher product is never one uniform size.

Why a single reduction-ratio figure can be misleading

Rock arriving at a primary crusher may contain fines, intermediate fragments, and occasional oversize blocks. Its discharge may contain particles below the target setting, near-size material, and a coarser fraction that recirculates through a screen and closed-circuit crusher. A ratio based only on the largest observed feed fragment and the nominal crusher setting may be convenient, but it does not necessarily describe the actual size reduction occurring in the circuit.

That distinction matters when assessing throughput, energy demand, wear rate, and downstream performance. A crusher can show a high nominal reduction ratio while producing an overly broad gradation, excessive fines, or a coarse tail that overloads the next crushing or grinding stage. Conversely, a lower ratio at one stage may be the more robust choice if it improves product control and distributes reduction work across the plant.

Reduction ratio should therefore be treated as a process measurement, not as an isolated machine claim. The calculation method must match the decision being made: preliminary equipment selection, crusher duty verification, circuit balance work, performance testing, or lifecycle-cost benchmarking.

The main methods used to calculate reduction ratio

Maximum-size ratio

The simplest method divides the maximum feed size by the maximum product size:

R = F_max / P_max

This approach is useful for quick screening of crusher suitability, particularly when the main risk is occasional large feed. It helps answer whether a machine can accept the expected top size and reduce it enough for the next equipment item. In a quarry or mine receiving blasted rock with variable fragmentation, top-size capability remains important for avoiding bridging, stoppages, and damage at the inlet.

Its weakness is that maximum size says little about the bulk of the material. One oversize boulder can determine F_max, while most of the feed may be much smaller. Likewise, the largest product fragment may be a rare outlier rather than a representative discharge size. This method is best used as an acceptance check, not as the sole basis for comparing crusher efficiency.

Percentile-size ratio

A more representative method uses sizes taken from a particle-size distribution. The most common notation is F80 and P80:

R₈₀ = F80 / P80

F80 is the screen aperture through which 80 percent of the feed mass passes. P80 is the equivalent 80 percent passing size for the product. If feed F80 is 180 mm and product P80 is 30 mm, the calculated reduction ratio is 6:1.

This method is widely useful because it describes the bulk of the material while remaining less sensitive to isolated oversized particles. It is particularly relevant where the crusher feeds a grinding circuit, a heap-leach preparation stage, or another controlled reduction step. Those downstream processes respond to the distribution of particles, not merely to the largest piece in the sample.

F80/P80 does have limits. The same P80 can conceal very different product shapes. One crusher may produce more fines and more coarse tailing material, while another produces a tighter distribution around the desired size. Both can have the same P80 reduction ratio. For this reason, the full size distribution should accompany any F80/P80 value used in equipment evaluation.

Average-size ratio

Some calculations use an arithmetic mean or another average particle-size value:

R = average feed size / average product size

This can be acceptable for internal process monitoring when sampling and data treatment are consistent. It is less suitable for procurement comparisons because “average size” is often undefined. It may refer to a mass-weighted mean, a geometric mean, a midpoint from sieve classes, or a visually estimated average. Different definitions produce different ratios from the same material.

Unless the averaging method, sieve series, sample preparation, and calculation basis are explicitly documented, average-size reduction ratios should not be used to rank competing crusher options.

Open-side setting and closed-side setting references

Crusher settings are often used as a practical proxy for product size. In jaw, cone, and gyratory crushers, the closed-side setting (CSS) is the smallest distance between crushing surfaces during the cycle. The open-side setting (OSS) is the largest gap. A setting is operationally important, but it is not automatically the same as the product P80 or the maximum product size.

Material characteristics, chamber design, liner profile, crusher speed, feed grading, and whether the crusher is choke-fed all influence the actual product distribution at a given CSS. A setting-based reduction ratio may be suitable for an early-stage layout calculation, but it should be replaced with measured or manufacturer-validated gradation data before finalizing a plant design.

How the calculation should follow the crushing circuit

Reduction ratio is often incorrectly assigned to one machine when the relevant result belongs to the circuit. In a multi-stage plant, each crusher has a stage reduction ratio, while the plant has an overall reduction ratio:

Overall reduction ratio = primary feed characteristic size / final product characteristic size

Stage ratios multiply when they are calculated on compatible size bases. For instance, a primary crusher at 3:1, followed by a secondary crusher at 4:1 and a tertiary crusher at 3:1, produces an approximate overall ratio of 36:1. That arithmetic is useful for early circuit planning, but it does not replace mass-balance and screening analysis. Material bypassing a crusher, recirculating loads, scalping screens, and natural fines all alter the actual distribution seen by each stage.

Closed-circuit crushing requires particular care. The crusher discharge may contain a coarse fraction that returns through the circuit several times. If P80 is measured only from the crusher discharge before classification, it may overstate the final reduction achieved by the complete stage. If product size is measured after the screen, it represents the accepted product but not the crusher discharge itself. Both values are valid when clearly labelled; neither should be substituted for the other.

For a meaningful equipment comparison, define the boundary first. State whether the calculation covers crusher feed to crusher discharge, feed to screen undersize, or run-of-mine feed to final plant product. Then apply the same boundary to every option.

Feed condition changes the result before the crusher starts

Reduction ratio calculations are only as reliable as feed characterization. Feed top size is important, but it is not enough. A competent evaluation also considers the full feed gradation, moisture, clay content, abrasiveness, compressive strength, fracture pattern, and the proportion of naturally occurring fines.

A feed containing substantial fines may produce an apparently modest reduction ratio because much of the material already passes through the target screen size. If those fines are not removed before crushing, they can occupy chamber volume, reduce effective crushing action, and complicate product sampling. Scalpable fines should be identified separately when assessing the actual work required from the crusher.

Material competence also changes the practical relationship between setting and product size. Brittle ore may break readily and create more fines. Tough, slabby, or moist material may pass through differently, pack in the chamber, or produce a less predictable discharge. A reduction ratio that is achievable on a competent, well-graded test feed may not hold under variable mine feed conditions.

This is why reduction-ratio claims should be reviewed alongside the stated rock type and feed condition. A number without a material description is incomplete engineering information.

Using reduction ratio to select the crusher stage, not just the crusher

Different crusher types are generally assigned different reduction duties because their breaking mechanisms and product-control behavior differ. Primary jaw and gyratory crushers commonly handle coarse feed and initiate reduction. Secondary and tertiary cone crushers often support controlled reduction in hard-rock circuits, especially where screening provides a stable feed. Impact crushers can deliver higher reduction in suitable materials but may require closer attention to wear and the effect of feed abrasiveness. Roll crushers may be selected where a controlled, lower-fines product is more important than maximum reduction.

The selection question is not simply which machine provides the highest reduction ratio. It is whether the required ratio can be achieved while maintaining capacity, product specification, acceptable liner consumption, and a stable operating window. Pushing one stage to an aggressive ratio can reduce equipment count, yet it may also raise power draw, accelerate wear, widen the size distribution, or create a recirculating load that offsets the apparent simplification.

When comparing alternatives, a practical sequence is:

1. Define the feed and product size distributions required at the exact circuit boundary.
2. Choose a common calculation basis, usually F80/P80 for process comparison and maximum size for inlet protection.
3. Separate nominal setting data from measured product-size data.
4. Review the full gradation, especially the coarse tail and the fines fraction.
5. Check whether the ratio remains achievable at the required throughput and feed condition.
6. Evaluate wear, power, screening duty, and recirculating load as part of the same decision.

This sequence prevents a frequent procurement error: selecting a crusher based on an attractive reduction ratio that was derived under a different feed gradation, a different setting, or a different circuit configuration.

Sampling and reporting determine whether the calculation can be trusted

Particle-size data must represent the full material stream. A grab sample from one point in a conveyor flow can overrepresent fine material or coarse fragments, depending on where and when it is taken. Sampling should capture the entire stream as far as practical, use sufficient increments over the operating period, and preserve mass representation through splitting and screening.

The reporting format should identify the sieve basis, whether sizes are dry-screened or otherwise measured, the sample location, the operating condition, and the crusher setting at the time of sampling. It should also state whether the feed was pre-scalped and whether the product is crusher discharge or classified plant product.

These details may appear administrative, but they determine whether a reported reduction ratio can be reproduced. In technical benchmarking, a ratio without its measurement basis is not a dependable comparison point.

Common interpretation errors

One error is comparing a manufacturer’s maximum feed size with another supplier’s F80 value. The resulting ratios look numerical and precise, but they describe different populations of material. Another is treating CSS as product top size or P80 without confirming the crusher’s actual gradation curve.

A third error is assuming that higher reduction always improves economics. A high ratio may shift cost from one crusher to liners, motors, screens, conveyors, or grinding equipment. The economically sound arrangement is usually the one that delivers the required product distribution with stable utilization across the circuit, not the arrangement with the largest single-stage ratio.

Finally, avoid treating the ratio as a constant across liner life. As liner geometry changes, chamber volume, nip conditions, and product shape can change as well. Operational reporting should therefore pair reduction ratio with liner condition and operating setting, especially when evaluating performance trends over time.

For procurement and design reviews, the strongest reduction-ratio calculation is usually a paired assessment: use maximum-size data to confirm mechanical acceptance, then use F80/P80 and the complete size distribution to evaluate process duty. Platforms that benchmark crushing equipment, such as G-MRH’s mineral processing coverage, are most useful when their published comparisons preserve this context rather than reducing complex crusher performance to one headline ratio. The final decision should rest on a defined feed, a defined product boundary, and a calculation method that can be repeated under the intended operating conditions.
