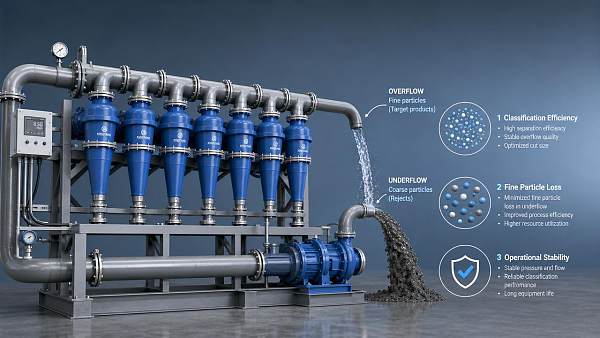

Hydrocyclone Separation Efficiency: When Fine Losses Signal Trouble

Hydrocyclone separation efficiency is often judged by throughput and cut size, but persistent fine losses can reveal deeper process instability, equipment wear, or control gaps. For project managers and engineering leaders, these warning signs affect recovery, water balance, energy use, and downstream performance. This article examines when fine losses signal real trouble and how to diagnose the root causes before they escalate into costly operational setbacks.

In mineral processing circuits, a small shift in overflow fineness or underflow density can cascade into lower metal recovery, unstable flotation feed, and excess recirculating loads within 24 to 72 hours. For project leaders overseeing brownfield upgrades, commissioning programs, or debottlenecking work, hydrocyclone separation efficiency is not just a process metric. It is a control point tied directly to production risk, maintenance planning, and capital discipline.

Within the G-MRH operating context, where benchmarked performance, compliance, and lifecycle cost matter as much as nameplate capacity, fine losses should be treated as an early-warning signal. The key question is not whether fines are present, but whether their level, trend, and location indicate normal circuit behavior or a developing fault.

Why Fine Losses Matter More Than They First Appear

A hydrocyclone rarely fails in a dramatic way. More often, hydrocyclone separation efficiency declines gradually through changes in pressure, apex wear, feed solids variation, or poor pump control. The result can be a 2% to 5% increase in misplaced fines, which may look minor on a daily report but become material over a 30-day production cycle.

The operational consequences for project-managed plants

For concentrators handling copper, iron ore, gold, phosphate, or industrial minerals, persistent fine losses usually affect at least four linked areas: recovery, water balance, grinding efficiency, and downstream unit stability. In a closed grinding circuit, even a 10 to 15 micron shift in effective cut size can alter flotation kinetics or thickener loading enough to create unplanned operating interventions.

• Reduced recovery from valuable mineral fines reporting to the wrong stream
• Higher circulating load caused by classification inefficiency
• Increased water demand when overflow dilution rises beyond target range
• More variable feed to flotation, leach, or dewatering stages

Why project managers should treat trends, not snapshots, as decisive

One isolated sample proving poor hydrocyclone separation efficiency does not automatically justify shutdown or equipment replacement. A stronger basis for action is a repeated trend over 3 to 7 sampling intervals, especially when accompanied by rising pump power, unstable sump level, or wear-part replacement frequency shortening from 12 weeks to 6 weeks.

In capital projects and EPC handover phases, this distinction matters. Teams often focus on throughput attainment, yet overlook whether the plant is achieving stable classification at design solids concentration. That can hide performance erosion until the first quarter of operation.

The table below shows how fine-loss patterns typically map to project-level concerns and decision triggers.

The practical insight is that fine losses are rarely an isolated laboratory issue. They are often a systems issue, linking process design, instrumentation, and operating practice. That is why hydrocyclone separation efficiency should be reviewed alongside mass balance data, wear records, and control-loop stability rather than in isolation.

When Fine Losses Signal Real Trouble

Not every classification deviation requires escalation, but there are clear thresholds where hydrocyclone separation efficiency becomes a business risk. Project teams should define trigger points before startup or before major ramp-up events, especially in plants where feed hardness, ore blend, or water quality changes weekly.

Five warning conditions that justify immediate review

1. Fine losses persist for more than 48 hours despite stable feed tonnage.
2. Feed pressure varies beyond a typical control band, such as ±5% to ±8%.
3. Apex or vortex components require replacement at less than 50% of expected wear life.
4. Overflow particle size drifts while mill power and circulating load both increase.
5. Downstream flotation or thickening performance worsens without reagent or feed-grade explanation.

Mechanical wear is often underestimated

A worn apex can enlarge underflow discharge and distort the internal flow pattern long before external damage is obvious. In high-abrasion duties, wear progression can become measurable within 400 to 1,000 operating hours, depending on ore competency, solids percentage, and material selection. That makes scheduled inspection intervals critical for maintaining hydrocyclone separation efficiency.

Control instability can mimic design failure

Many sites assume poor classification is caused by undersized cyclones or incorrect geometry. In practice, unstable feed pressure, poorly tuned variable-speed drives, and sump level oscillation are common causes. If pressure swings from 80 kPa to 110 kPa during a single hour, the cyclone may never operate in a stable regime, even if the hardware is correctly specified.

During commissioning reviews, some teams also reference generic supply notes or placeholder records such as 无. These references are only useful when converted into site-specific operating windows, inspection frequencies, and acceptance criteria.

Root-Cause Diagnosis: A Structured Approach for Engineering Leaders

The fastest way to lose time is to troubleshoot hydrocyclone separation efficiency through assumptions. A structured diagnosis should separate feed issues, equipment wear, control-loop behavior, and circuit interactions. For project managers, this approach supports faster decisions on whether the problem needs maintenance action, process tuning, or design review.

A four-step diagnostic sequence

1. Verify sampling integrity

Before changing equipment settings, confirm that overflow and underflow samples are collected at consistent times and under representative conditions. Two samples taken 15 minutes apart during a sump upset can create misleading conclusions. At least 3 to 5 consecutive sample sets are usually more informative than a single result.

2. Check operating inputs against design windows

Review feed density, feed pressure, volumetric flow, and solids throughput against the intended range. If a cyclone cluster was designed for 45% to 55% solids by weight and the plant is feeding 38% solids for extended periods, hydrocyclone separation efficiency will naturally deteriorate without any defect in the cyclone body itself.

3. Inspect wear geometry, not just component condition

Visual inspection should be supported by dimensional checks. An apex opening enlarged by even 3 to 5 millimeters can materially change classification behavior. The same applies to vortex finder wear, misalignment, or uneven distribution across a multi-cyclone cluster.

4. Assess the surrounding circuit

Hydrocyclones respond to upstream and downstream disturbances. Variable ore hardness, pump suction air ingress, screen bypass, and water addition practices all influence separation. Strong diagnosis therefore requires looking at the entire grinding-classification loop over at least one full operating shift, and ideally across 24 hours.

The following table can help project teams organize diagnostic priorities and avoid unnecessary component replacement.

A disciplined sequence reduces false diagnoses. It also strengthens communication between operations, maintenance, and project controls teams, which is especially important when a classification issue could trigger production loss, spare-parts procurement, or change-order discussions.

How to Improve Hydrocyclone Separation Efficiency Without Overcorrecting

When fine losses become visible, the instinct is often to make large operating changes. That can worsen instability. The better approach is targeted adjustment based on the dominant cause. For most sites, improvements come from 3 areas: steadier feed conditions, tighter wear management, and more reliable monitoring.

Practical improvement levers

• Hold feed pressure within a tighter operating band, often within ±3% to ±5% where practical.
• Standardize wear inspections every 2 to 4 weeks in abrasive service instead of reacting only after visible failure.
• Track overflow PSD, underflow density, and pump power together rather than as separate dashboards.
• Review water addition points to prevent sudden dilution swings ahead of the cyclone feed pump.
• Confirm that all active cyclones in a cluster operate with balanced feed distribution.

Do not confuse throughput gains with efficiency gains

Some interventions increase tonnage briefly while reducing classification quality. For example, raising feed pressure may improve apparent throughput but also push more fines into the wrong stream if the feed solids profile is already unstable. For project owners focused on net plant value, hydrocyclone separation efficiency must be assessed by total circuit outcome, not one hourly tonnage figure.

Use procurement and maintenance data together

A site that replaces apexes every 5 weeks instead of the planned 10 weeks may not just have a wear-material issue. It may also have feed-pressure spikes, inappropriate operating density, or a mismatch between cyclone duty and installed liner choice. In some procurement files, placeholder product entries such as 无 appear during early sourcing. Those records become valuable only when paired with measured wear life and operating context.

Implementation Priorities for Projects, Upgrades, and Operating Plants

For project managers and engineering leads, the best response to classification instability is to embed hydrocyclone performance into project governance, not leave it solely to day-to-day operations. This is particularly important in plant expansions, ore transition campaigns, and digital monitoring upgrades.

A practical governance checklist

1. Define design operating windows for pressure, solids, and target cut size before ramp-up.
2. Set escalation triggers for fine-loss trends over 24 hours, 72 hours, and 7 days.
3. Link wear-part inventory planning to actual operating hours and ore abrasivity.
4. Include cyclone performance review in weekly production and maintenance meetings.
5. Use digital historian data to correlate upset events with shift, ore blend, and water balance changes.

Where digital monitoring adds value

In line with broader G-MRH priorities around digital twins and engineering benchmarking, classification monitoring is increasingly useful when tied to real-time pressure, density, and particle-size trend analysis. Even without advanced predictive software, a well-configured dashboard reviewed daily can help teams identify whether hydrocyclone separation efficiency is drifting gradually or failing in step changes.

That distinction affects decision speed. Gradual drift may justify planned shutdown inspection within 7 days. Step-change behavior may require same-shift intervention to prevent recovery loss or downstream upset.

Persistent fine losses are rarely just a nuisance. They are often an early indicator that hydrocyclone separation efficiency is being compromised by wear, unstable control, off-design feed conditions, or broader circuit imbalance. For project managers and engineering decision-makers, the most effective response is structured diagnosis, clear trigger thresholds, and tighter alignment between operations, maintenance, and procurement planning.

If your plant is experiencing variable classification, unexplained recovery loss, or recurring cyclone maintenance issues, now is the time to review the full operating picture. Engage your technical team, benchmark performance against realistic duty conditions, and identify where targeted corrections will deliver the highest return. Contact us to discuss a tailored assessment, get a practical troubleshooting framework, or explore more solutions for mineral processing performance improvement.
