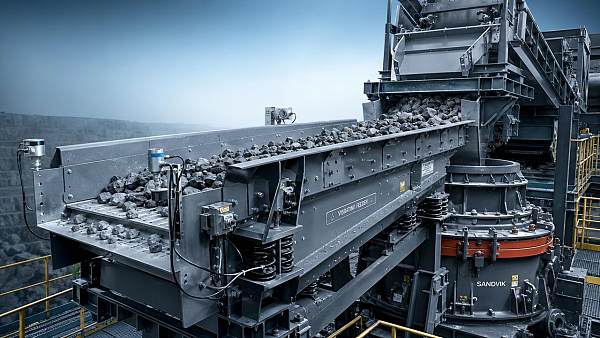

Using Vibrating Feeder Stroke Data to Prevent Throughput Loss

For technical evaluators, throughput loss rarely begins at the crusher—it often starts with overlooked feeder performance. By tracking vibrating feeder stroke data, teams can detect load instability, mechanical drift, and uneven material flow before these issues reduce plant efficiency. This article explains how stroke-based monitoring supports more accurate diagnostics, stronger maintenance decisions, and more consistent bulk material handling performance.

In mining, quarrying, mineral processing, and heavy bulk handling systems, the vibrating feeder is often treated as a simple transfer device. In practice, it is a control point that influences surge capacity, crusher choke feed stability, screen utilization, and downstream plant balance.

For evaluators working across G-MRH priority sectors such as open-pit mining, mineral processing, and bulk material handling, feeder diagnostics must move beyond visual checks. Stroke data gives a measurable view of dynamic behavior, allowing teams to compare actual machine response against design intent, maintenance history, and production demands.

Why Stroke Data Matters in High-Tonnage Material Handling

A vibrating feeder’s stroke is the linear displacement generated during each vibration cycle. In practical terms, it influences how aggressively material is mobilized across the deck. Even a shift of 1–2 mm can alter bed depth, flow consistency, and the load presented to a primary crusher or transfer point.

Many plants monitor motor current, belt load, or crusher power draw, but these are secondary indicators. Vibrating feeder stroke data is closer to the source of the disturbance. When stroke drops below a stable operating band, throughput loss may appear 10–30 minutes later through reduced crusher utilization or intermittent surge depletion.

Typical Performance Problems Linked to Stroke Deviation

Technical evaluators should treat abnormal stroke as a leading indicator rather than a maintenance afterthought. A feeder can continue running while already operating outside its efficient range, especially under variable ore size distributions, wet fines, or changing bunker levels.

• Reduced stroke can cause sluggish material advancement and inconsistent bed movement.
• Excessive stroke may increase liner wear, spring stress, and spillage at skirts or chutes.
• Uneven stroke across both sides of the feeder may indicate spring imbalance, structural looseness, or eccentric wear.
• Fluctuating stroke under constant drive settings may suggest changing load conditions, electrical instability, or component fatigue.

Where Throughput Loss Usually Starts

In a typical crushing circuit rated at 600–1,200 tph, a feeder operating 8% below its target stroke can reduce delivered live load enough to destabilize primary crusher feed. The result may not appear dramatic in one hour, but over a 12-hour shift it can create substantial lost tons, more operator intervention, and uneven wear across the circuit.

This is why vibrating feeder stroke data is valuable in technical benchmarking. It supports plant-wide interpretation, not just feeder-specific maintenance. At G-MRH level review, the question is not whether the feeder runs, but whether it runs within a repeatable dynamic envelope that protects total system throughput.

The table below shows how stroke-related conditions typically translate into operational effects for high-duty bulk solids systems.

The main conclusion is that not all throughput loss starts as a visible stoppage. Small stroke deviations often appear first as instability, then as efficiency erosion, then as maintenance cost. Evaluators who monitor these changes early can intervene before downstream KPIs fall.

How to Interpret Vibrating Feeder Stroke Data Correctly

Stroke values become useful only when interpreted in context. A reading of 4.8 mm is neither good nor bad by itself. It must be compared with feeder design range, operating frequency, load state, ore characteristics, liner condition, and historical trend over at least 2–4 weeks.

Baseline Before Alarm

Every site should define three bands: target, caution, and intervention. For example, a feeder designed to operate at 5.5–6.5 mm may use a caution threshold at ±0.4 mm and an intervention threshold at ±0.7 mm, depending on material density and structural sensitivity.

A useful baseline also includes side-to-side symmetry. If one side trends at 6.1 mm and the other at 5.4 mm, the average may look acceptable while the machine is already developing asymmetrical stress. Technical evaluators should always review average stroke and side deviation together.

Inputs That Should Be Cross-Checked

1. Feed rate in tph versus commanded feeder setting.
2. Motor power, current variation, and startup behavior.
3. Spring height, spring condition, and support frame integrity.
4. Bunker level, material moisture, and fines percentage.
5. Liner wear profile and deck condition over the last 500–1,000 operating hours.

When these variables are checked together, vibrating feeder stroke data becomes a diagnostic tool rather than a standalone number. In complex brownfield plants, this is especially important because two feeders with the same stroke reading may behave differently under different loading regimes.

Common Interpretation Errors

One common mistake is to compare stroke values from unloaded and loaded conditions without labeling the test state. Another is to assume that a stable motor current means a stable feeder. In reality, mechanical looseness or spring deterioration can shift displacement while electrical values remain within normal band.

Some evaluation teams also rely too heavily on spot checks. A single reading taken during one shift may miss cyclic behavior linked to bunker replenishment, wet weather, or ore blending. A better practice is to log trend data across at least 3 operating conditions: low load, nominal load, and surge load.

A Practical Monitoring Framework for Technical Evaluators

For procurement, reliability, and process assessment teams, stroke monitoring should be structured as part of an evaluation framework. The goal is not more data for its own sake. The goal is faster decisions on maintenance timing, component replacement, and feeder suitability for duty-cycle demands.

Five-Step Review Sequence

1. Confirm OEM or site-approved stroke range for the feeder model and duty.
2. Measure loaded and unloaded stroke on both sides under repeatable operating conditions.
3. Trend readings over 7, 14, and 30 days to identify drift rate.
4. Cross-check with throughput, crusher draw, and maintenance records.
5. Classify the finding as process issue, mechanical issue, structural issue, or mixed cause.

Recommended Evaluation Thresholds

The thresholds below are not universal specifications, but they are useful as practical review bands in mining and heavy-industry plants where feeders operate in abrasive, variable-density environments.

These review bands help technical evaluators distinguish routine variation from emerging performance risk. They are also useful during supplier comparison, refurbishment review, and acceptance testing for new or rebuilt feeding systems.

Using Monitoring Data in Procurement and Asset Decisions

In B2B capital planning, feeder assessment should support more than maintenance. It should guide lifecycle decisions. If stroke stability degrades repeatedly every 4–6 months despite standard interventions, the issue may relate to under-specification, frame fatigue, or mismatch between feeder design and ore profile.

This is where institutions such as G-MRH add value through benchmark-driven review. Evaluators can compare feeder behavior across similar duty classes, material categories, and compliance expectations. Even where product-specific data is limited, structured references and technical listings such as 无 can be inserted into broader supplier screening workflows without disrupting engineering review discipline.

Maintenance Actions That Prevent Throughput Erosion

Once abnormal vibrating feeder stroke data is detected, the response should be staged. Immediate shutdown is not always necessary, but waiting until visible failure appears is expensive. A staged intervention model helps protect tonnage while controlling maintenance hours and spare consumption.

Priority Inspection Points

• Check spring packs for cracking, settlement, or uneven compression.
• Inspect drive components for looseness, wear, or eccentric inconsistency.
• Review deck and side plate fasteners for torque loss after heavy impact events.
• Examine skirts, liners, and chute interfaces for evidence of skewed material flow.
• Confirm that buildup, moisture, or sticky fines are not altering live load dynamics.

When to Repair, Rebuild, or Replace

A repair is usually justified when stroke drift is traceable to one or two replaceable elements and structural geometry remains sound. A rebuild may be more cost-effective when recurring imbalance is linked to cumulative wear across springs, exciters, liners, and support points over 8,000–15,000 service hours.

Replacement should be considered when the feeder cannot hold target stroke under current duty, or when process demands have changed significantly. Examples include ore density increases, higher fines content, increased target tph, or a revised crushing circuit that now requires tighter feed consistency.

Common Mistakes That Increase Hidden Losses

Plants often replace springs without checking base alignment, or reset stroke without addressing the root cause of live load variation. Another frequent mistake is to accept reduced stroke because the feeder still “keeps up” during short observation windows. This can conceal long-term cost through reduced utilization and unplanned maintenance.

A disciplined evaluator should ask three questions: Is the feeder meeting target stroke? Is it holding that stroke under changing load? Is the trend improving after intervention? If the answer to any one of these is no, deeper review is justified.

What Technical Evaluators Should Require From Suppliers and Service Partners

When evaluating feeders, rebuild providers, or monitoring vendors, stroke measurement capability should be part of the commercial and technical discussion. A supplier that cannot define acceptable operating bands, measurement method, or maintenance interpretation adds uncertainty to asset decisions.

Minimum Questions for Supplier Review

1. What is the design stroke range under loaded operating condition?
2. How is left-right balance verified during commissioning and after maintenance?
3. Which components most affect stroke retention over the first 12 months?
4. What inspection interval is recommended: weekly, monthly, or per 250 operating hours?
5. Can performance data be trended against throughput and wear indicators?

These questions help procurement and engineering teams move from price comparison to performance comparison. In heavy-duty environments, that distinction is critical. A feeder with lower upfront cost but weak stroke stability may create higher total cost through reduced production hours and repeated corrective work.

Where digital diagnostics are being added to existing plants, evaluators should also confirm sensor durability, data sampling frequency, installation constraints, and reporting format. In many operations, the best outcome is not the most complex system, but a robust setup that provides reliable stroke trend visibility for 12 months or more with minimal manual adjustment.

Vibrating feeder stroke data is one of the most practical early-warning indicators available in bulk solids handling. It helps technical evaluators connect mechanical condition with process stability, identify hidden sources of throughput loss, and plan interventions before production targets are missed.

For mining groups, EPC teams, and heavy-equipment decision makers operating across the G-MRH landscape, stroke-based assessment strengthens maintenance planning, procurement review, and asset benchmarking. If you are reviewing feeder reliability, plant debottlenecking options, or monitoring strategy, now is the right time to obtain a tailored evaluation path. Contact us today to discuss your application, request a technical review, or explore more solution options.
