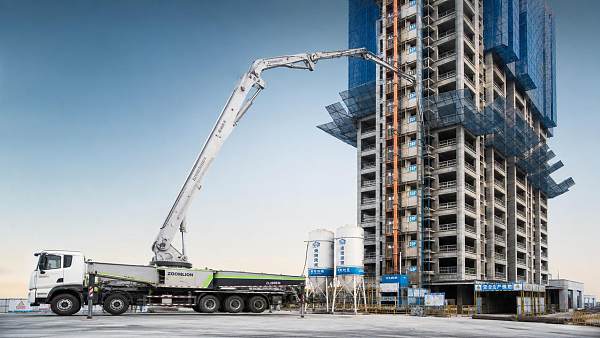

Concrete Pump Vertical Reach Limits in High-Rise Pouring

In high-rise construction, understanding concrete pump vertical reach is critical for planning safe, efficient pours and avoiding costly delays. This article explains how concrete pump vertical reach works in real projects, what limits actual performance, and how to judge whether a pumping setup can meet height, volume, and schedule requirements without overstressing equipment or compromising concrete quality.

What does concrete pump vertical reach really mean?

Concrete pump vertical reach is the practical height a pump can deliver concrete while maintaining stable flow, acceptable pressure, and consistent placement quality.

It is not simply the boom length shown in a brochure. Boom reach and pumping reach are related, but they are not identical.

A truck-mounted boom may place concrete directly within its unfolding range. A separate line pump may push material much higher through vertical pipelines.

When people search for concrete pump vertical reach, they often mean one of three things:

• maximum boom placement height
• maximum pumping height through steel pipe
• reliable working height under real site conditions

The third definition matters most. Real reach depends on pressure loss, pipeline routing, concrete mix, ambient temperature, and pump condition.

On towers, podiums, shafts, and core walls, the practical limit usually appears before the theoretical machine limit.

Why is concrete pump vertical reach limited in high-rise pouring?

The main limiter is pressure. As concrete moves upward, the pump must overcome gravity, internal friction, and resistance at bends, reducers, and valves.

Vertical lift adds static load. Long pipelines add frictional loss. Every elbow increases turbulence and drag inside the line.

This means concrete pump vertical reach is governed by a system, not by a single number printed on the machine plate.

Key engineering factors

• Pump pressure rating and hydraulic efficiency
• Pipe diameter, wall thickness, and wear condition
• Number of bends, clamps, and reducers
• Concrete slump, aggregate size, and cement paste content
• Pumping speed and delivery rate
• Elevation, temperature, and stop-start frequency

A line with many bends can reduce concrete pump vertical reach more than added height alone. Poor routing often causes avoidable failures.

Pipeline wear also matters. A worn line may increase leakage risk, vibration, blockage probability, and pressure instability during upper-floor pours.

Why boom length can mislead planning

A 50-meter boom does not guarantee a 50-meter pour above every obstacle. Setback, outriggers, slab edges, and rebar congestion affect placement.

For tall structures, a stationary pump with climbing pipeline is often more important than a long boom.

How do mix design and pipeline layout affect concrete pump vertical reach?

Concrete mix design can either support or undermine pumping to height. The same pump may perform very differently with two similar-looking mixes.

A pumpable mix needs enough fines and paste to lubricate the pipeline. Harsh mixes generate more friction and increase blockage risk.

Mix properties that matter most

• Slump and slump retention over transport time
• Maximum aggregate size relative to pipe diameter
• Water-cement ratio and admixture compatibility
• Paste volume and grading continuity
• Segregation and bleeding resistance

If slump drops before pumping begins, concrete pump vertical reach falls quickly because pressure demand rises while flow becomes less stable.

Oversized aggregate is another common cause of line blockage. This risk grows at reducers, elbows, and near vertical-to-horizontal transitions.

Layout practices that improve height performance

1. Keep the route as straight as possible.
2. Minimize sharp bends and unnecessary reducers.
3. Use secure supports to reduce movement and shock loads.
4. Inspect clamps, gaskets, and worn elbows before every major pour.
5. Prime the line correctly and avoid long interruptions.

Good routing improves concrete pump vertical reach because the pump spends less energy overcoming avoidable resistance.

How can you estimate practical vertical reach before a pour?

Estimating concrete pump vertical reach requires more than comparing building height to advertised pump output. A pre-pour review should consider the whole delivery path.

Start with total equivalent line length. Convert elbows and fittings into added friction length, then combine that value with true vertical lift.

Next, compare the expected pressure demand with the pump’s rated pressure under continuous duty, not ideal short-duration operation.

A practical review checklist

This method gives a realistic picture of concrete pump vertical reach and helps avoid underestimating resistance in complex high-rise setups.

What mistakes reduce concrete pump vertical reach on site?

Many problems come from planning assumptions rather than machine failure. The most common mistake is treating theoretical capacity as guaranteed field performance.

Frequent site errors

• Using a mix optimized for strength but not for pumpability
• Adding water on site without controlled adjustment
• Ignoring wear in the delivery line
• Stopping the pump too long during floor transitions
• Selecting boom pumps where stationary systems are more suitable

Improper restarts are especially risky. Once concrete sits inside a vertical line, restarting may require much higher pressure than normal pumping.

Another misunderstanding is assuming more pressure always solves the issue. Excessive pressure can increase wear, trigger line failure, or worsen segregation.

Safety consequences of misjudging reach

Overestimating concrete pump vertical reach may lead to hose whip, clamp failure, emergency line cleaning, and unplanned cold joints in structural elements.

In dense urban projects, delays also affect crane coordination, formwork cycles, traffic access, and labor productivity across multiple trades.

When should a project use a boom pump, line pump, or staged pumping system?

The right setup depends on building height, pour volume, access constraints, and whether the project needs direct placing flexibility or maximum vertical pumping performance.

Quick comparison

For supertall work, staged systems may be the best answer when single-line concrete pump vertical reach approaches operational risk thresholds.

This choice also affects maintenance planning, pour sequencing, spare parts availability, and shutdown recovery time.

FAQ: How should concrete pump vertical reach be judged in practice?

Concrete pump vertical reach is best judged as a performance envelope, not a single number. Reliable planning combines equipment data with pipeline design and concrete behavior.

Before the next high-rise pour, review equivalent line length, verify mix pumpability, inspect wear parts, and stress-test the chosen system against actual site constraints.

That approach improves safety, protects schedule certainty, and makes concrete pump vertical reach a controllable engineering variable rather than a costly surprise.
